Product description

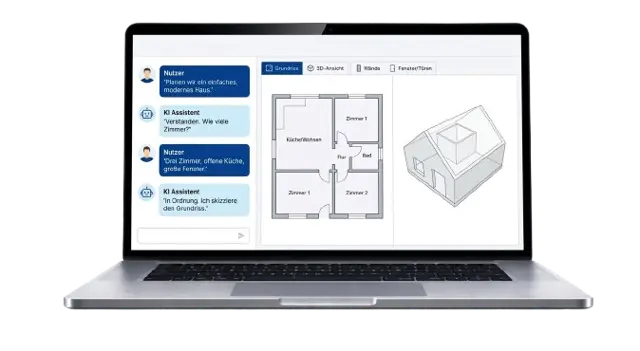

ChatCAD enables the fully automated generation of CAD drawings based on natural language. Companies store their design logic once – and then receive finished, error-checked drawings at the push of a button. The modular architecture adapts to existing processes, block libraries and data formats.
Features
Natural language input
Create CAD models via text or voice input without manual modeling
Data-based input
Generate CAD models directly from order confirmations or descriptions
Customer-specific design logic
Store your own component rules and parameters; the AI automatically generates correct individual drawings based on them
Block library integration
Existing block libraries and CAD logic can be integrated and used
Integrated into AutoCAD
Result visible directly in AutoCAD, changes to the result possible at any time
Data security / On-premises
Local AI server; no sharing of sensitive design data
Video

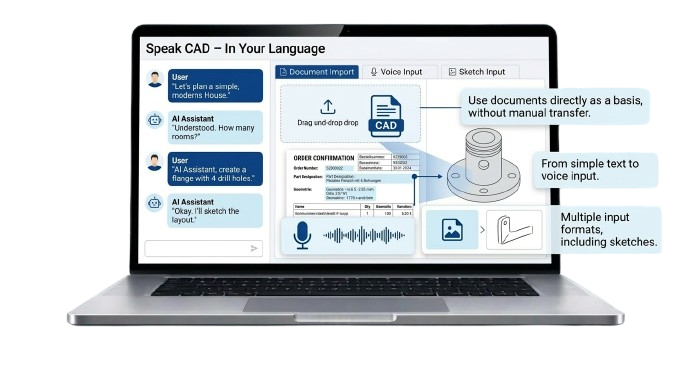

Speak CAD – in your language
ChatCAD accepts various input formats – from simple free text and voice input to structured documents such as order confirmations. This allows the tool to be integrated seamlessly into existing workflows: Anyone who already works with order documents can use them directly as a basis without transferring data manually.

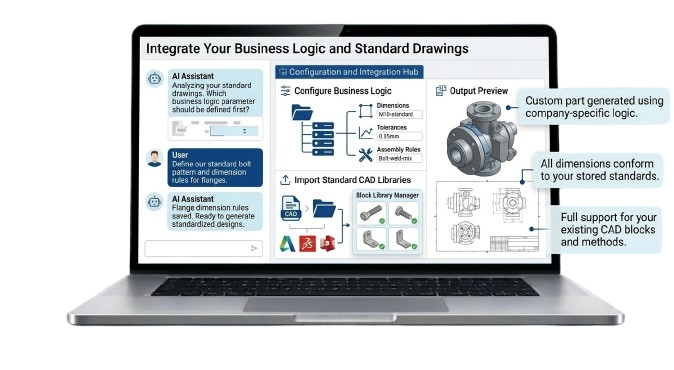

Your logic. Your drawings.
No company designs the same way as another. ChatCAD makes it possible to store company-specific design logic once – such as the typical dimensions, connection types and variants of a system. The AI then automatically generates suitable drawings on this basis that comply with your own standards. Existing block libraries and proven CAD logic are fully supported, so no duplicate work is created and the result fits your business from day one.
Your know-how stays where it belongs.
Design data is sensitive – it reflects a company's know-how. ChatCAD can be operated entirely on a local or private server infrastructure, either on-premises or directly at the Hamm Technology Center. Sensitive project and customer data never leaves your own environment, and compliance requirements such as the GDPR can be met without compromise.
About us
Kleen Software has been developing CAD and automation solutions, especially for AutoCAD, since 1995 and offers customised products that are tailored to the individual needs of industry, engineering and construction. As an authorised Autodesk developer, our company is the ideal partner for making processes more efficient and driving digitalisation forward.
